Black Poly Pipe Compression Fittings

In water supply and irrigation systems, the quality and compatibility of pipe fittings are just as crucial as the pipes themselves. Among the most widely used solutions are black poly pipe compression fittings, known for their easy installation, strong sealing performance, and versatility. Whether you are working with PE pipe fittings or poly pipe fittings, compression fittings provide a dependable and leak-free connection for a wide range of applications.

What Are Black Poly Pipe Compression Fittings?

Black poly pipe compression fittings are mechanical connectors used to join polyethylene (PE) pipes without the need for heat fusion or glue. These fittings consist of a compression nut, sealing ring, support ring, and a central body. They are most commonly made from high-grade polypropylene plastic or engineering nylon, with EPDM or NBR rubber seals for watertight performance.

Designed to work with various grades of poly pipes such as LDPE, MDPE, and HDPE, these fittings are especially useful where ease of installation and reusability are priorities.

Advantages of Using Compression Fittings for PE and Poly Pipes

Tool-Free Installation: No need for special welding equipment.

Strong, Leak-Free Seal: Thanks to dual o-rings and precise design.

Reusable: Can be unscrewed and reused for temporary or evolving systems.

Cost-Effective: Low maintenance costs and easy replacement.

Versatile: Compatible with a wide range of pipe sizes and materials.

These qualities make compression fittings a go-to solution for farmers, contractors, and homeowners alike.

Applications in Water Supply and Irrigation

Compression fittings are ideal for both high- and low-pressure systems across various sectors:

Agricultural Irrigation: Drip irrigation, sprinkler systems, greenhouse piping

Residential Use: Garden water systems, rainwater harvesting

Potable Water Supply: Municipal and rural water pipelines

Temporary Piping Setups: Events, construction sites, seasonal installations

Their ease of use and quick-connect nature make them especially popular in situations requiring flexibility and fast deployment.

Types of Black Poly Pipe Compression Fittings

To suit different pipe routing needs, various compression fittings are available:

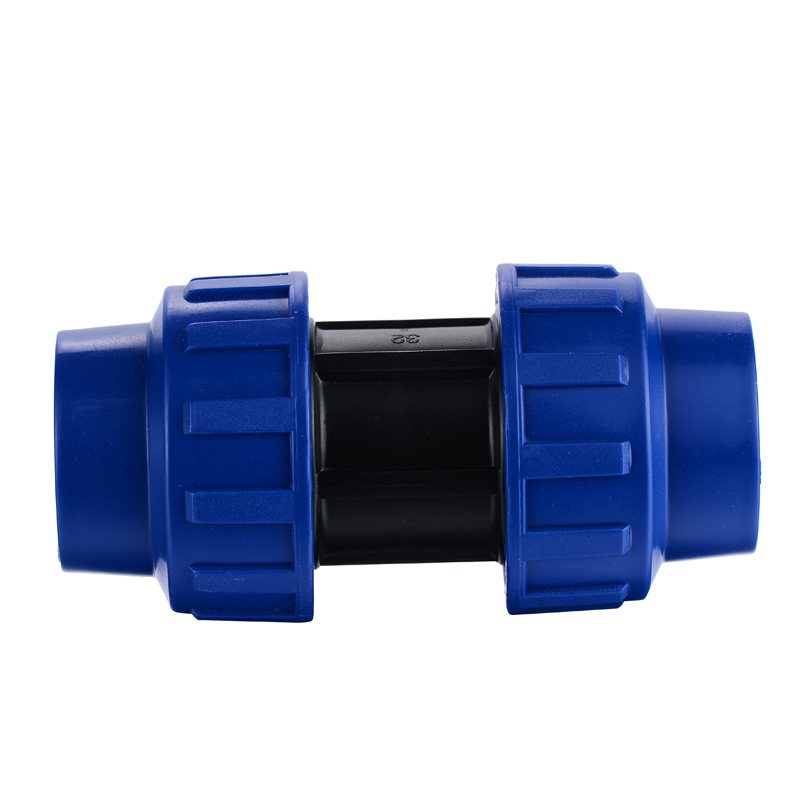

Straight Couplers: For extending pipe runs

Elbows: 90° or 45° for corner turns

Tees: Equal or reducing tees for branching

End Caps: For pipe terminations

Threaded Adapters: Male/female ends to connect to valves or threaded fittings

Compression Valves: Integrated shut-off for flow control

These fittings come in multiple size options to fit pipes from 16mm to 110mm or 1/2" to 4".

Compatibility: PE Pipe Fittings vs Poly Pipe Fittings

While the terms PE pipe fittings and poly pipe fittings are often used interchangeably, there are subtle differences:

PE Pipe Fittings: Typically refer to pressure-rated pipes made from PE80 or PE100 (e.g., SDR11, PN10)

Poly Pipe Fittings: A broader term, including LDPE pipes used in low-pressure irrigation systems

Black poly pipe compression fittings can accommodate both types, as long as the pipe outer diameter matches and the pressure rating is considered.

Installation Guide and Best Practices

1. Cut the Pipe: Ensure a clean, square cut

2. Chamfer the Edge: Smooth edges reduce risk of seal damage

3. Insert into the Fitting: Push the pipe firmly into the fitting until it reaches the stop

4. Tighten the Nut: Hand-tighten, then secure with a wrench if needed—do not overtighten

5. Test the System: Conduct a pressure test to ensure no leaks

Common Sizes and Specifications

Available Sizes: 16mm–110mm or 1/2"–4"

Material: Polypropylene (body), EPDM/NBR (o-rings)

Pressure Rating: PN6 to PN16 depending on fitting design

Certifications: WRAS, ISO, NSF (depending on manufacturer)

Black poly pipe compression fittings are an essential component in modern water distribution and irrigation systems. Whether you’re working with PE pipe fittings or general poly pipe fittings, these connectors offer a secure, quick, and cost-effective solution. Their versatility and ease of installation make them a preferred choice across residential, agricultural, and industrial applications.

FAQ

Q1: Are black poly pipe compression fittings reusable?

A: Yes, they can be removed and reused multiple times as long as the o-ring remains intact.

Q2: Can compression fittings be used underground?

A: Yes, but ensure the fitting is rated for underground use and is properly supported to avoid movement and stress.

Q3: What’s the difference between compression and barbed fittings?

A: Compression fittings seal using mechanical pressure and o-rings, while barbed fittings require hose clamps and are better for low-pressure systems.

Q4: Are compression fittings compatible with SDR11 or HDPE PN10 pipes?

A: Yes, if the outer diameter of the pipe matches the fitting, and pressure requirements are within the fitting’s rated capacity.

Q5: Do I need tools to install poly pipe compression fittings?

A: Only basic tools like a pipe cutter and wrench—no welding or electrical tools are needed.
