What Are Compression Fittings?
Compression fittings are mechanical connectors that join sections of PE pipe without the need for welding or glue. Each fitting typically consists of:
A body (main housing)
A compression nut
A thrust ring or grip ring
An O-ring for sealing
The pipe is inserted into the fitting, and as the compression nut is tightened, the internal rings grip the pipe and compress the seal to form a watertight connection.
| Part | Material |
| Body(A) | Heterophasic block polypropylene co-polymer(PP-B) of |
| exceptional mechanical properties even at high temperature. | |
| Blocking bush(D) | Polypropylene |
| Nut(B) | Polypropylene with dye master of high stability |
| to UV rays andsolidity to heat | |
| Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance |
| And hardness | |
| O Ring gasket(E) | Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
| Reinforcing ring(F) | Stainless steel for female threads from 1"to 4" |
Compression Fittings for PE Pipe
Secure, Easy-to-Install Connections for Agricultural and Water Supply Systems
Our compression fittings for PE pipe offer a quick, reliable, and leak-free solution for connecting polyethylene pipes in various applications. Designed for durability and convenience, these PE compression fittings are ideal for agricultural irrigation, landscaping, and drinking water systems.
Product Highlights
Tool-Free Installation – No welding or glue required
Strong Sealing – Internal O-ring ensures watertight performance
Reusable & Durable – Made from high-quality polypropylene (PP)
Wide Compatibility – Suitable for PE80, PE100, and LDPE pipes

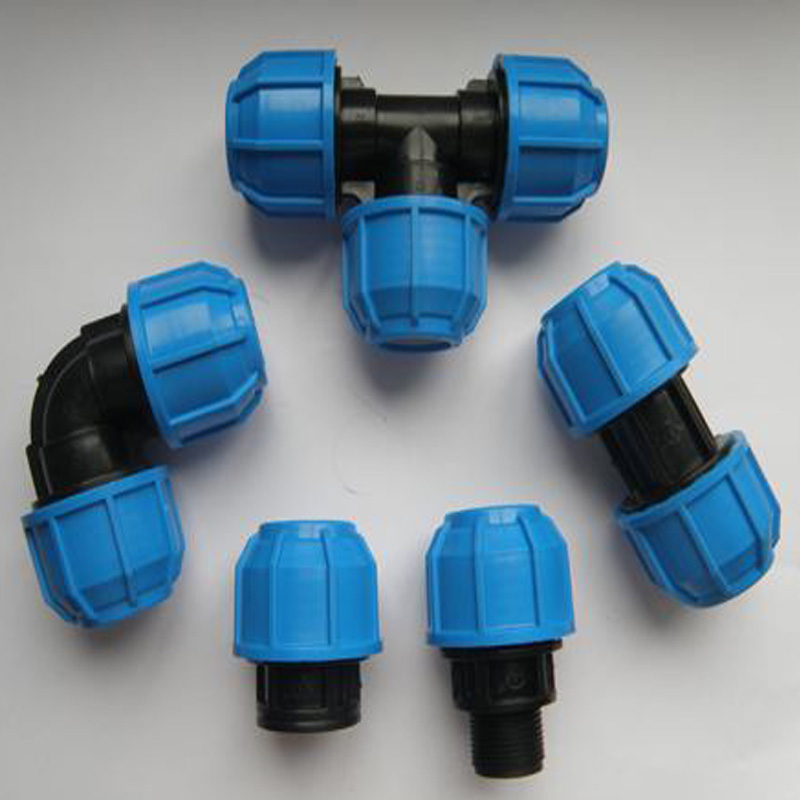

Types of PE Compression Fittings Available
We offer a full range of polyethylene pipe fittings for different installation needs:

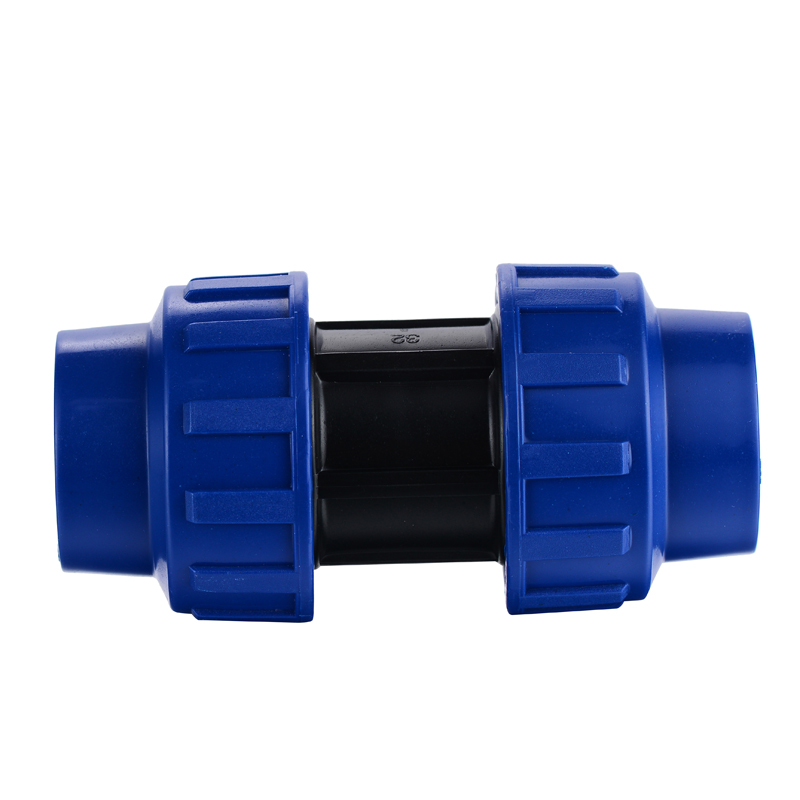

Compression Coupling – Connect two PE pipes
Compression Elbow (90° / 45°) – Change pipeline direction

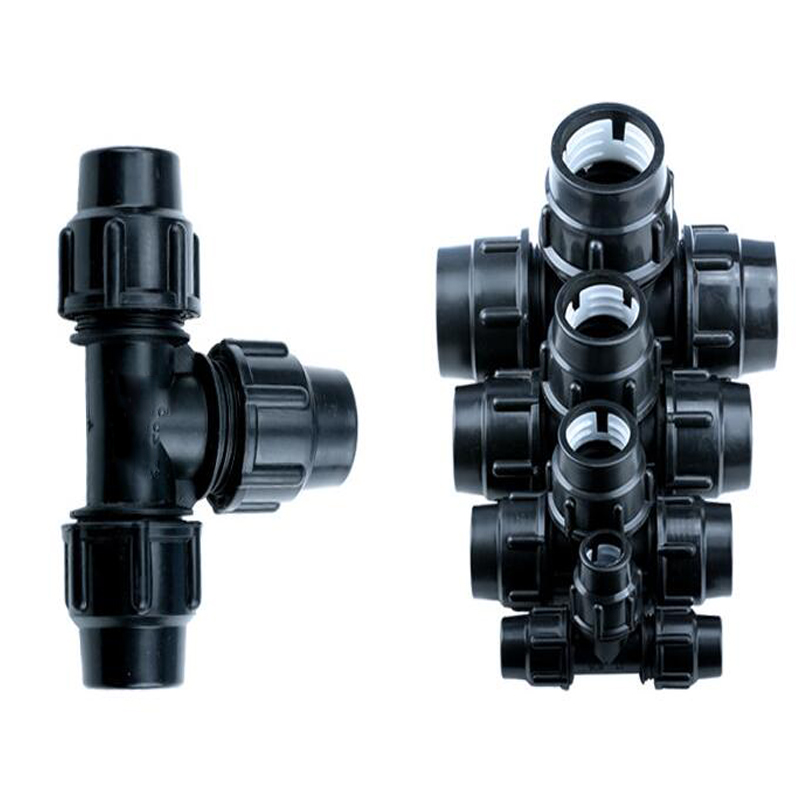

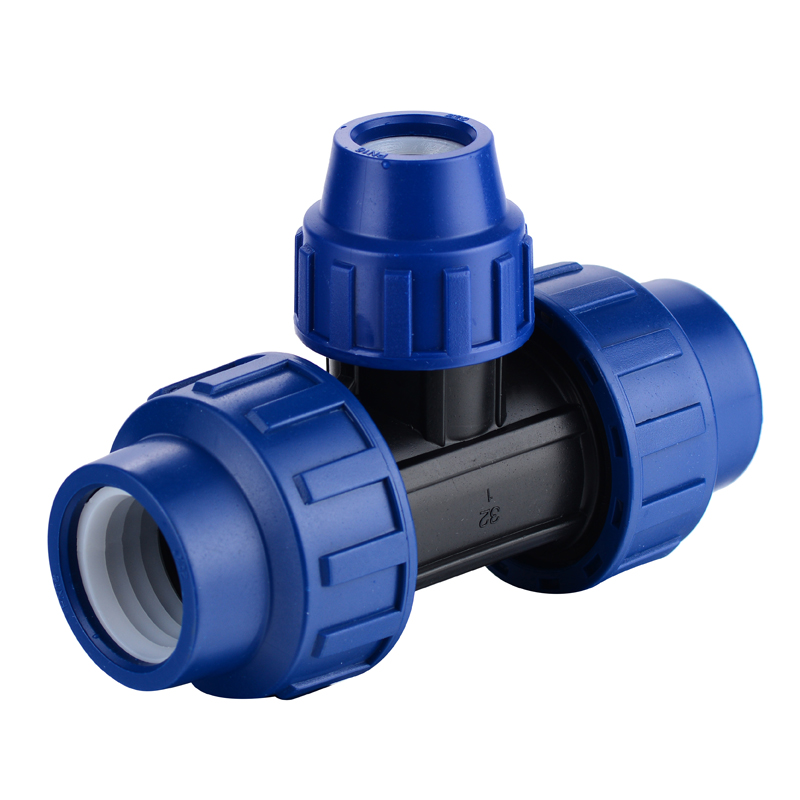

Compression Tee – Split one pipe into two
Male / Female Thread Adapter – Connect to metal or plastic threads
End Cap – Seal pipe ends securely

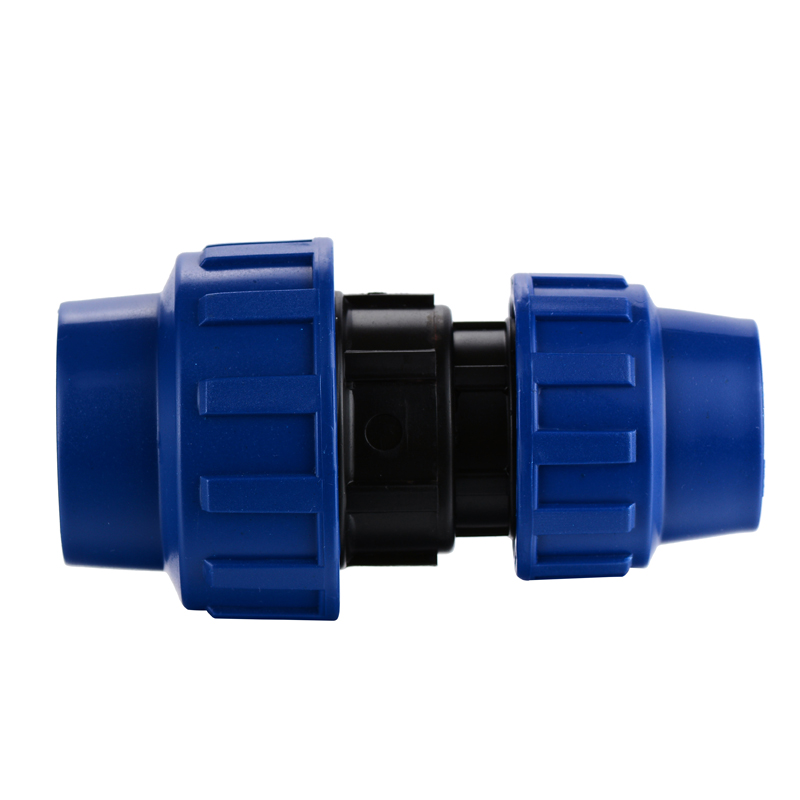

Reducer – Join pipes of different sizes
All fittings are available in sizes from 16mm to 110mm (or custom sizes on request).
Common Applications
Our compression fittings for PE pipes are widely used in:
Agricultural drip irrigation and sprinkler systems
Greenhouse and garden water systems
Rural drinking water pipelines
Low-pressure industrial fluid transport
Easy Installation Steps
Cut the PE pipe squarely and clean the end
Insert pipe into the fitting until it reaches the stop
Tighten the nut by hand (use wrench for final tightening if needed)
Ensure no leaks before pressure testing
Why Choose Our PE Compression Fittings?
Designed for both professional use and DIY installation
Suitable for underground and exposed use
Compatible with most PE irrigation pipes
In-stock and ready for fast shipping
FAQ
1. What are PE compression fittings used for?
PE compression fittings are designed to securely connect polyethylene pipes in irrigation systems, water supply lines, and low-pressure fluid transport systems. They are commonly used in agriculture, landscaping, and construction.
2. Are these compression fittings compatible with all types of PE pipes?
Yes. Our compression fittings for PE pipe are compatible with PE80, PE100, and LDPE pipes. Please check the sizing chart to ensure a proper fit.
3. What sizes are available for polyethylene pipe fittings?
We offer polyethylene pipe fittings in sizes ranging from 16mm to 110mm. Custom sizes can also be made upon request.
4. How do I install PE compression fittings?
Installation is simple:
Cut the pipe cleanly and insert it into the fitting
Tighten the cap nut by hand or with a wrench
No welding or gluing is required
5. Are these fittings reusable?
Yes. PE compression fittings can be disassembled and reused without damaging the pipe or the fitting, making them ideal for temporary or changing systems.
6. Can PE compression fittings be used for drinking water?
Absolutely. All materials used in our PE compression fittings are non-toxic and safe for potable water applications.
7. Do I need special tools for installation?
No special tools are required. Basic hand tightening is usually sufficient. A wrench can be used for additional grip if needed.
8. What is the working pressure of these fittings?
Our compression fittings are typically rated for pressures up to PN16 (16 bar), depending on size and pipe specification.
