Electrofusion Coupler for SDR 11 HDPE Water Pipe

In high-pressure water distribution systems, selecting the right pipe and connection method is critical for ensuring long-term reliability. Among various options, HDPE water pipes paired with electrofusion couplers have become a preferred solution, especially when using SDR 11 rated pipe. This article explains how these components work together to create durable, leak-free pipelines and why they are ideal for a wide range of water supply projects.

What is an Electrofusion Coupler?

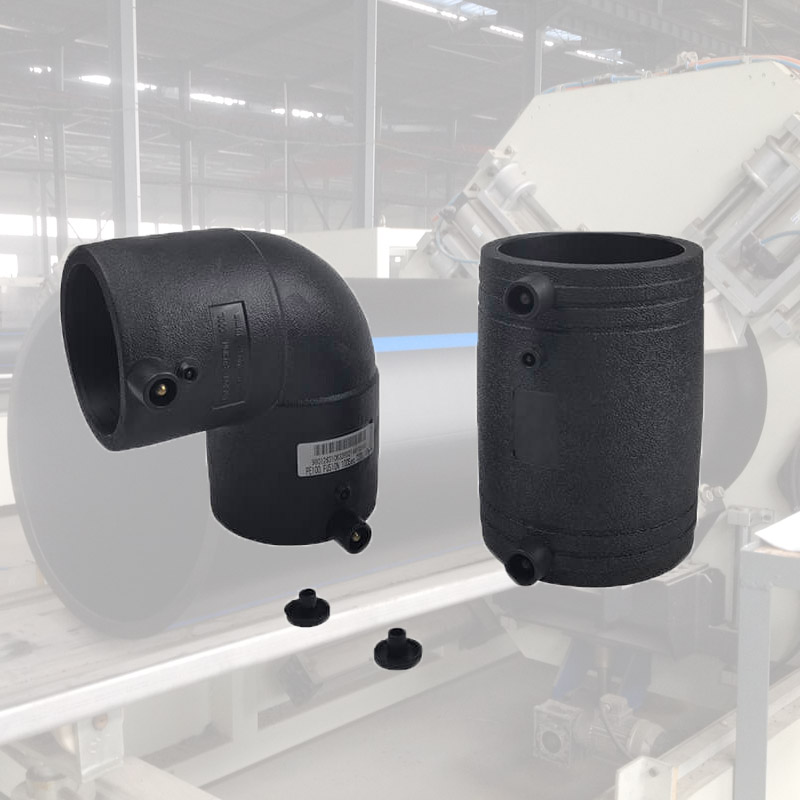

An electrofusion coupler is a specialized fitting used to join two polyethylene (PE) pipes using electrical resistance. Each coupler contains embedded heating elements that, when connected to an electrofusion welding machine, heat the inside of the fitting and the outer surface of the pipe simultaneously. This creates a strong molecular bond between the components without requiring open flames or mechanical fasteners.

Key benefits of electrofusion couplers include:

Strong, pressure-resistant joints

Minimal installation space required

Suitable for trenchless and underground installations

Reduced risk of leakage over time

Understanding SDR 11 HDPE Water Pipe

SDR (Standard Dimension Ratio) defines the relationship between a pipe’s outer diameter and wall thickness. SDR 11 means the outer diameter of the pipe is 11 times the wall thickness, resulting in a thick-wall pipe with a higher pressure rating, usually up to 16 bar (PN16) for water supply.

Advantages of SDR 11 HDPE water pipes:

High resistance to internal pressure and external loads

Long service life in challenging conditions

Ideal for municipal, industrial, and agricultural applications

Common sizes range from 20mm to 630mm, and the pipe is typically made from PE100 material with excellent mechanical and chemical resistance.

Why Use Electrofusion Couplers with SDR 11 Pipes?

SDR 11 HDPE pipes are often used in pressurized systems where strength and reliability are critical. Electrofusion couplers are an ideal choice for these pipes due to their compatibility with thicker walls and ability to form seamless joints that withstand high pressure and temperature fluctuations.

Advantages include:

Enhanced sealing performance, even in buried installations

Reliable connection without reducing flow capacity

Suitable for remote and confined space work environments

Quick and clean installation process

Installation Process: Electrofusion Coupler + SDR 11 HDPE Pipe

Proper installation is key to achieving a successful electrofusion weld. Here's a basic step-by-step guide:

1. Pipe preparation:

  Cut the pipe ends clean and square

  Scrape the oxidation layer from the pipe surface

  Clean the ends with alcohol wipes

2. Insert into the coupler:

  Push both pipe ends into the electrofusion fitting until it reaches the stop mark

3. Welding:

  Connect the coupler wires to an electrofusion welding machine

  Input the welding parameters (voltage and time) based on the fitting’s barcode

  Start the fusion cycle and allow automatic control of heating

4. Cooling:

  Let the joint cool down for the recommended period before moving or testing the pipe

5. Inspection:

  Visually inspect the fusion indicator pins and weld quality

  Perform pressure testing before commissioning

Applications in Water Supply Projects

The combination of SDR 11 HDPE pipes and electrofusion couplers is widely used in:

Urban and rural drinking water systems

Firefighting water networks

Industrial water circulation lines

Mining slurry and process pipelines

Agricultural irrigation systems with high-pressure requirements

Product Specifications and Availability

We supply a full range of electrofusion couplers for SDR 11 HDPE water pipes in diameters ranging from 20mm to 400mm or more, with pressure ratings up to PN16. All products comply with international standards such as ISO 4427, EN 12201, and WRAS certification.

Available features:

Material: PE100

Barcode welding compatible

High-performance copper coils

Individually tested and packaged

For pressure-resistant, maintenance-free water pipelines, the use of electrofusion couplers with SDR 11 HDPE pipes offers unmatched durability and reliability. Whether you're building a municipal water line or an industrial process network, this solution ensures quick installation, strong joints, and long service life.

FAQ

Q1: What is the difference between SDR 11 and SDR 17 HDPE pipes?

A1: SDR 11 has a thicker wall and higher pressure rating than SDR 17, making it suitable for more demanding applications.

Q2: How long does an electrofusion joint take to cool?

A2: Cooling time depends on pipe size and ambient temperature but typically ranges from 5 to 30 minutes.

Q3: Can I use electrofusion fittings for gas lines?

A3: Yes, but only if the fittings are certified for gas applications and meet local standards.

Q4: Is special training required for electrofusion welding?

A4: Yes, operators should be trained to handle equipment correctly and follow proper installation procedures.
