Electrofusion Coupler in Municipal Water Supply Network

Municipal water supply networks play a crucial role in delivering clean and safe water to communities. The reliability of these systems heavily depends on the quality of pipe connections used throughout the distribution network. Among the many jointing methods available, electrofusion couplers have become increasingly popular for connecting High Density Polyethylene (HDPE) pipes in municipal water supply systems. This article explores what electrofusion couplers are, their role in water supply networks, installation processes, and benefits.

What is an Electrofusion Coupler?

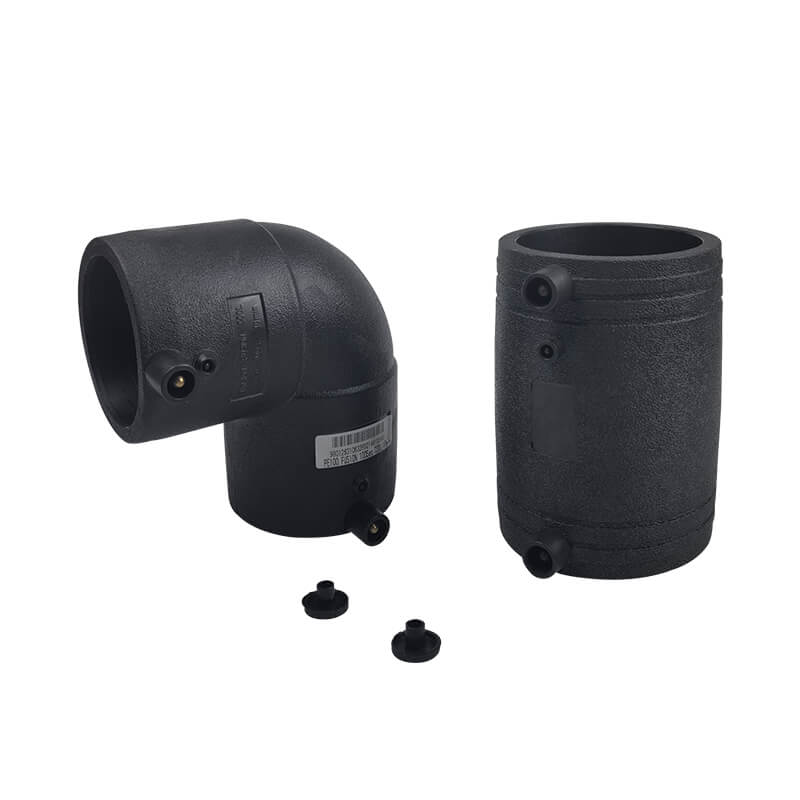

An electrofusion coupler is a specialized fitting designed to join two sections of HDPE pipe using an integrated heating element. When electrical current passes through the element, it melts the inner surface of the coupler and the outer surface of the pipes, fusing them into a strong, homogeneous joint.

Electrofusion couplers typically consist of:

A polyethylene body with embedded electrical heating coils

Terminals for connecting to the electrofusion machine

A protective outer layer to ensure uniform heating

This method provides a permanent, leak-proof joint superior to many traditional fittings like mechanical couplings or simple adhesive connections.

Role of Electrofusion Couplers in Municipal Water Supply

In municipal water supply networks, maintaining joint integrity is critical to prevent leaks, contamination, and water loss. Electrofusion couplers ensure:

Leak-proof joints capable of withstanding high pressure

Flexibility to join pipes in complex layouts or tight spaces

Ease of repairs and modifications without disrupting large sections of the network

By enhancing system reliability and reducing maintenance frequency, electrofusion technology has become a standard for modern HDPE pipe installations in municipal water systems.

Installation Process of Electrofusion Couplers

Proper installation is essential for electrofusion couplers to perform effectively. The process involves:

1. Preparation: Cleaning and scraping the pipe ends to remove dirt, oxidation, and contaminants, ensuring a clean bonding surface.

2. Alignment: Inserting pipes into the coupler, making sure they are fully seated and aligned properly.

3. Fusion: Connecting the coupler to the electrofusion machine which delivers a controlled electrical current to heat the coils. The heating melts the pipe and fitting surfaces to fuse them.

4. Cooling: After the heating cycle, the joint is allowed to cool undisturbed to solidify the fusion bond.

5. Testing: The joint may be pressure tested to confirm its integrity before the system is put into service.

Benefits of Using Electrofusion Couplers in Municipal Networks

Strong and durable joints: Fusion creates a molecular bond that is as strong as or stronger than the pipe itself.

Leak resistance: Reduced risk of leaks improves water conservation and protects public health.

Time and labor savings: Faster installation and reduced need for skilled welders compared to butt fusion methods.

Versatility: Compatible with various pipe sizes and pressure ratings, allowing for flexible network designs.

Corrosion resistance: HDPE and fusion joints resist chemical corrosion and soil degradation, extending pipeline life.

Challenges and Best Practices

Despite its advantages, successful use of electrofusion couplers requires attention to:

Proper surface preparation: Failure to clean and scrape pipes can lead to weak joints.

Certified equipment and trained operators: Using the correct electrofusion machines and ensuring operators are trained reduces installation errors.

Environmental conditions: Extreme temperatures or moisture can affect fusion quality and should be managed carefully.

Case Studies / Examples

Many municipalities worldwide have adopted electrofusion technology. For example, a city water authority reduced pipeline leaks by 40% after switching to electrofusion couplers for new HDPE installations. Cost comparisons also reveal that, despite slightly higher initial fitting costs, the overall maintenance and repair savings make electrofusion couplers a cost-effective choice.

Electrofusion couplers represent a reliable and efficient solution for joining HDPE pipes in municipal water supply networks. Their ability to create strong, leak-proof, and corrosion-resistant joints enhances the longevity and performance of water infrastructure. Utility managers and engineers looking to upgrade or expand their systems should consider electrofusion technology as a best practice.

FAQ

Q: Can electrofusion couplers be used on all HDPE pipe sizes?

A: Yes, they are available for a wide range of pipe diameters, typically from 20mm to over 630mm.

Q: How long does an electrofusion joint take to cure?

A: Cooling time varies by pipe size and ambient conditions but generally ranges from 5 to 30 minutes.

Q: What maintenance is required for electrofusion joints?

A: Once properly installed, electrofusion joints require minimal maintenance, mainly routine inspection for external damage.
