Electrofusion Tapping Saddle

In modern HDPE pipeline systems, making reliable and safe branch connections is critical for efficient water, gas, and irrigation distribution. Among the various fittings available, the electrofusion tapping saddle stands out as a convenient and secure solution. Also referred to as an electrofusion saddle or electrofusion tapping tee, this fitting allows easy tapping into an existing pipeline without compromising the strength or integrity of the system.


What is an Electrofusion Tapping Saddle?

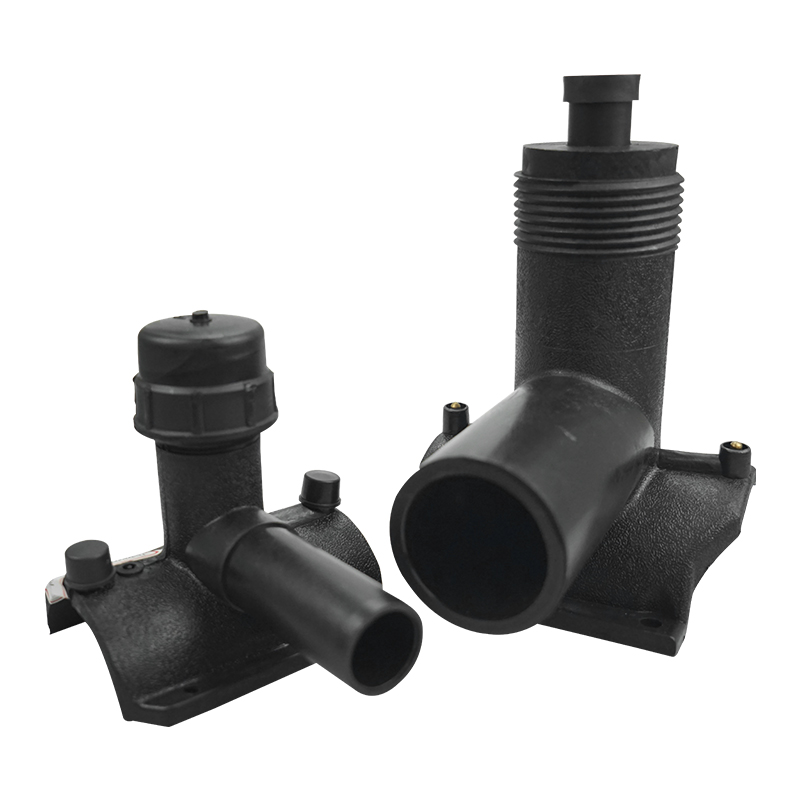

An electrofusion tapping saddle is a specialized fitting designed to create a branch outlet on a main HDPE pipe. It consists of a saddle body with integrated electrofusion coils and a tapping outlet. Once the saddle is clamped to the pipe and energized using an electrofusion control box, it forms a homogenous welded joint with the host pipe. After welding, the main pipe is tapped to allow fluid flow into the branch line.

This fitting is especially useful in systems where traditional hot tapping is not feasible or safe, such as in gas pipelines.


Key Features and Benefits

Strong and leak-free connection. The electrofusion process ensures a pressure-tight seal between the saddle and the main pipe.

No flame required. Unlike butt welding or hot tapping, no open flame is used, making it safer for gas and confined space applications.

Efficient installation. Quick to install with minimal excavation and labor.

Compact design. Ideal for areas with space constraints.

Corrosion resistance. Made from high-density polyethylene (HDPE), the saddle resists corrosion, scaling, and chemical degradation.


Common Applications

Electrofusion tapping saddles are used in a wide range of projects including:

Urban and rural water distribution networks

Natural gas and LPG pipeline systems

Agricultural irrigation setups

Industrial fluid transport systems

Whether you are installing a new tap on a municipal water main or branching off an irrigation pipe, an electrofusion saddle provides a reliable connection point.


How to Install an Electrofusion Saddle

1. Clean and scrape the HDPE pipe surface to remove oxidation.

2. Position the saddle and clamp it securely to the main pipe.

3. Connect to the electrofusion machine and follow the welding parameters.

4. Allow the joint to cool naturally after fusion.

5. Use a cutter or tapping tool to create the outlet if tapping is required.

6. Conduct a pressure test before putting the system into service.

Always follow the manufacturer's instructions and standards such as ISO 4427, EN 12201, or ASTM D2513.


Specifications

Electrofusion tapping saddles are available in various sizes, typically ranging from 63 mm × 25 mm to 315 mm × 90 mm.

Pressure ratings generally include PN10 and PN16.

They comply with international standards such as ISO, ASTM, and EN.

Some versions come with an integrated cutter for tapping, while others are designed for post-welding manual cutting.


Comparison: Electrofusion Saddle vs Other Fittings

Compared to other branch connection methods, electrofusion saddles offer distinct advantages.

Electrofusion tapping saddle: Uses electrofusion welding, not reusable, excellent safety in gas lines.

Mechanical saddle clamp: Uses mechanical fastening, reusable, but has lower safety due to potential leak risk.

Butt fusion branch tee: Uses butt fusion, not reusable, good safety but bulkier installation.


Maintenance and Best Practices

Always scrape and clean the pipe surface thoroughly before welding.

Use calibrated electrofusion machines and adhere to correct parameters.

Do not move or stress the joint during the cooling period.

Conduct proper pressure testing before starting service.


The electrofusion tapping saddle, also known as the electrofusion saddle or electrofusion tapping tee, is a modern and safe solution for HDPE pipeline branching. With its simple installation, leak-free performance, and compatibility with gas, water, and irrigation systems, it is an essential fitting for contractors and utility companies working with polyethylene pipe systems.


FAQ

Q1: What is the difference between an electrofusion tapping saddle and tapping tee?

They are often used interchangeably. Both create a branch from a main pipe, but the term "saddle" typically refers to the fitting’s mounting shape and structure.


Q2: Can an electrofusion saddle be used for gas pipelines?

Yes, electrofusion saddles are commonly used in gas systems because the process is sealed and does not involve flame, which enhances safety.


Q3: Are electrofusion saddles reusable?

No, once they are welded onto the pipe, they become a permanent part of the system and cannot be reused.


Q4: What tools are needed to install an electrofusion tapping saddle?

You will need an electrofusion welding machine, pipe scraper, pipe clamps, and a tapping tool if the saddle does not include an integrated cutter.
