What Is an HDPE Branch Saddle and How Is It Used?
An HDPE branch saddle is a specialized fitting designed to create a branch connection from a main HDPE pipeline without needing to cut or remove large pipe sections. It clamps onto the outside of a pressurized or non-pressurized main pipe and provides an outlet for a smaller-diameter pipe to be connected.
Structurally, it includes
A curved base that matches the outer diameter of the main pipe.
A saddle body with a threaded or welded outlet.
A sealing mechanism, usually with a rubber gasket or electrofusion surface.
Common Applications include
Municipal water distribution systems.
Agricultural irrigation pipelines.
Industrial fluid transport systems.
Advantages over traditional tees
No need to cut and rejoin long lengths of pipe.
On-site installation with less labor.
Can be installed on live pipelines with certain models (e.g., tapping saddles with integrated valves).
Tapping Tee vs Branch Saddle for HDPE Pipes
While both fittings serve the purpose of creating branch connections, there are distinct differences between tapping tees and branch saddles:
| Feature | Tapping Tee | Branch Saddle |
| Valve Integrated | Often includes a built-in valve for hot tapping | No valve – pipe must be shut down or drilled after |
| Pressure Suitability | Ideal for live systems | Usually used in non-pressurized or shut-down systems |
| Installation Type | Electrofusion or mechanical | Mechanical or electrofusion |
| Cost | Higher due to valve mechanism | More economical |
Use tapping tees when you need to create a new connection without stopping the water flow. Use branch saddles for simpler installations where pipe shutdown is possible.

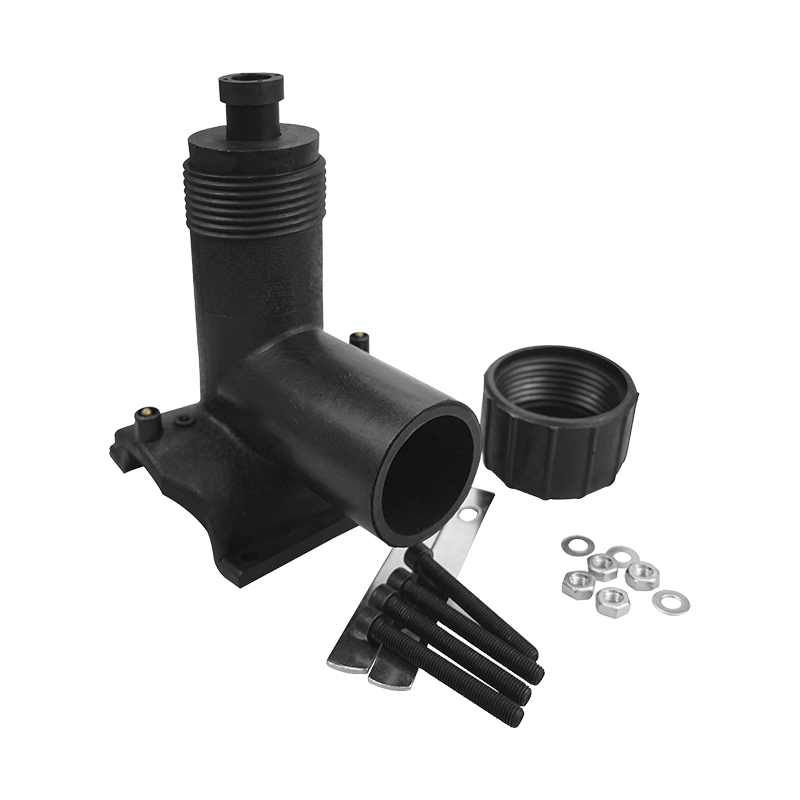

HDPE Tapping Tee Installation Guide
Installing an HDPE tapping tee involves several steps and can vary slightly depending on whether the fitting is mechanical or electrofusion type.
Electrofusion Tapping Tee Installation:
1. Clean the Pipe Surface: Scrape and clean the HDPE pipe where the tee will be installed.
2. Position the Tee: Align the tee’s saddle portion over the pipe and clamp it securely.
3. Connect Electrofusion Wires: Attach wires to the fusion machine.
4. Weld: Follow the fusion machine’s timing to complete the weld.
5. Cooling Time: Allow the fitting to cool before applying pressure.
6. Drill (if needed): Some tees require drilling through the outlet to access the flow.
Mechanical Tapping Tee Installation:
1. Align and bolt the saddle onto the pipe.
2. Use a drill or tapping tool through the integrated valve.
3. Open the valve to activate the branch line.
Advantages of Using HDPE Branch Saddles in Pipeline Systems
HDPE branch saddles offer a range of benefits in various fluid transport systems:
Cost-Effective: Requires fewer materials and less labor compared to full pipe cutting and tee installation.
Quick Installation: Ideal for fieldwork where fast deployment is necessary.
System Expansion: Enables flexible branching without disrupting main lines.
Versatility: Compatible with multiple pipe sizes and wall thicknesses.
Low Leakage Risk: When properly installed, branch saddles provide secure and durable connections.
How HDPE Branch Saddles Are Used in Agricultural Irrigation Systems
In agriculture, especially in large-scale drip or sprinkler systems, HDPE branch saddles allow for easy installation of sub-main or lateral lines from a central water supply line.
Benefits in irrigation:
No need to disassemble or cut the main line.
Available in sizes from 32mm to 200mm to match typical agricultural pipes.
Compatible with 16mm or 20mm drip lines via adapters.
Speeds up installation, especially on uneven terrain or where pipe cutting is difficult.
This approach supports modular design, helping farmers expand or modify their systems easily.
Municipal Water Projects: Choosing the Right HDPE Tapping Tee
Municipal water networks often require tapping into large-diameter HDPE pipes without service interruption. Electrofusion tapping tees with built-in valves are ideal for this application.
Selection tips:
Use metal-threaded outlets for connections to meters or steel fittings.
For flange-based branches, choose flanged tapping tees (e.g., ANSI 150 flange).
In potable water systems, ensure compliance with hygiene standards.
Correct tapping tee selection ensures system reliability, pressure retention, and compliance with regulatory standards.
How to Choose Between Electrofusion and Mechanical HDPE Saddles
Both electrofusion saddles and mechanical saddles have their place in HDPE systems. The choice depends on the application and system requirements:
Electrofusion Saddles:
Best for high-pressure or buried systems.
Offers a strong, leak-proof fusion bond.
Requires fusion equipment and trained personnel.
Mechanical Saddles:
Fast to install, no special equipment required.
Suitable for low-pressure or temporary systems.
Easier to disassemble and relocate.
If longevity and pressure handling are critical, electrofusion is preferred. For quick, low-cost installations, mechanical versions are often sufficient.
Top Considerations When Buying HDPE Branch Saddles and Tapping Tees
When selecting these fittings, consider the following:
1. Material Quality: Ensure high-grade PE100 or PE80 material.
2. Pressure Rating: Match PN10 or PN16 ratings to your system needs.
3. Outlet Type: Choose threaded, flanged, or plain outlets depending on what you're connecting.
4. Fusion Compatibility: If using electrofusion, make sure your machine matches the saddle’s requirements.
5. Pipe Size Fit: Verify compatibility with the OD and SDR of your main pipe.
Investing in the right fittings saves time, reduces leakage risk, and ensures long-term system performance.
FAQ
Q1: What is the difference between an HDPE branch saddle and a tapping tee?
A: A branch saddle is a fitting that allows you to create a branch outlet from a main HDPE pipe by clamping and welding or bolting it externally. A tapping tee typically includes an integrated valve or drilling port, allowing for a connection without shutting down the main line. Tapping tees are ideal for pressurized systems and live tapping, while branch saddles are more commonly used in non-pressurized or pre-planned installations.
Q2: Can I use a mechanical branch saddle on a pressurized HDPE pipeline?
A: Mechanical saddles can be used in low-pressure applications, but for high-pressure or critical systems, it's recommended to use electrofusion branch saddles or tapping tees with proper sealing to prevent leakage and ensure long-term performance.
Q3: How do I install an HDPE tapping tee?
A: The installation process depends on the type:
Electrofusion Tapping Tee: Clean and scrape the pipe surface, position the fitting, connect to the electrofusion machine, initiate fusion, and cool before drilling if required.
Mechanical Tapping Tee: Clamp the fitting onto the pipe, drill into the pipe using the integrated port, and open the valve to activate the branch.
Q4: What sizes are available for HDPE branch saddles and tapping tees?
A: Common sizes range from 63mm to 315mm or larger for the main pipe, with branch outlets from 20mm to 110mm. Custom combinations and reducers are also available depending on project needs.
Q5: When should I use a tapping tee instead of a standard saddle?
A: Use a tapping tee when:
The pipeline is live and cannot be shut down.
You need a pre-installed valve or threaded/flanged connection.
You're working in municipal or industrial systems where service continuity is critical.
Use a standard saddle when:
The pipeline is not under pressure.
Simplicity and cost-efficiency are key.
The system can be depressurized for installation.
Q6: Are HDPE branch saddles reusable?
A: Mechanical branch saddles may be reused if undamaged, although gaskets or seals should be inspected or replaced. Electrofusion saddles form a permanent bond and cannot be reused.
Q7: What pressure ratings are available for branch saddles and tapping tees?
A: Most fittings are rated for PN10 or PN16 (10 or 16 bar), depending on the wall thickness of the HDPE pipe and the type of fitting. Always confirm pressure class before installation.
Q8: Can HDPE tapping tees be used in drinking water systems?
A: Yes, if they are manufactured using food-grade PE100 material and comply with relevant standards (e.g., NSF, WRAS). Always check for certification before use in potable water systems.
