High Density Polyethylene Pipe Fittings

Pipe fittings are essential components in any piping system, serving as connectors, flow controllers, and direction changers. Among the many materials available, high density polyethylene pipe fittings, commonly known as PE pipe fittings or polyethylene pipe fittings, are widely used across various industries for their strength, durability, and flexibility. In this article, we explore the types, benefits, and applications of PE fittings and how to choose the right ones for your project.

What Are PE Pipe Fittings?

PE pipe fittings are components made from polyethylene materials, used to connect, redirect, or terminate PE pipes in fluid transport systems. The most common material used is HDPE (High Density Polyethylene), which offers higher pressure resistance and better structural integrity compared to LDPE or MDPE.

HDPE pipe fittings are known for their:

High strength-to-density ratio

Excellent corrosion and chemical resistance

Flexibility and shock absorption

They are ideal for systems that require long-term reliability under varying environmental conditions.

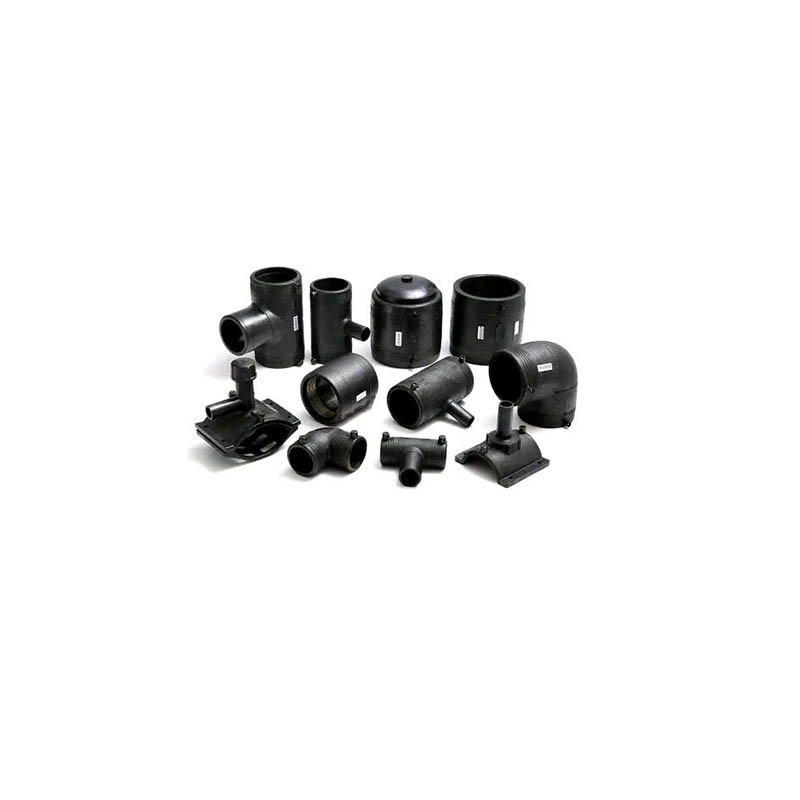

Common Types of Polyethylene Pipe Fittings

PE fittings are available in various types, depending on their connection method and functional purpose.

By Connection Method

Butt Fusion Fittings: Welded directly to the pipe ends using heat and pressure, creating a strong, seamless joint.

Electrofusion Fittings: Fitted with embedded heating coils that fuse the fitting and pipe when electric current is applied.

Socket Fusion Fittings: Use a heated tool to weld the pipe and fitting together by insertion.

Compression Fittings: Mechanical fittings that are easy to install without special equipment.

By Function

Elbows (45°, 90°): Change pipe direction

Tees (Equal, Reducing): Split or combine flow

Reducers: Connect pipes of different diameters

End Caps: Seal the pipe end

Flange Adaptors: Connect PE pipe to metal pipelines or valves

Couplers: Join two pipe sections

Each fitting plays a critical role in ensuring the structural integrity and pressure resistance of the entire PE piping system.

Applications of HDPE Pipe Fittings

Thanks to their versatility and durability, polyethylene pipe fittings are used in a wide range of applications:

Municipal Water Supply: For underground water networks due to their corrosion resistance and leak-proof connections.

Gas Distribution: Suitable for medium and low-pressure gas lines, especially with electrofusion fittings.

Agricultural Irrigation: Ideal for drip and sprinkler systems because of their flexibility and ease of installation.

Industrial Fluids: Withstand harsh chemicals and high pressures in factory and processing environments.

Drainage and Sewer Systems: Resistant to blockage, root intrusion, and ground movement.

Advantages of Using PE Pipe Fittings

Choosing PE pipe fittings offers several key benefits:

High Pressure Tolerance: Suitable for systems with up to 20 bar, depending on SDR rating.

Corrosion Resistance: No rust or degradation even in aggressive environments.

Flexible and Impact-Resistant: Absorbs stress from soil shifts or pressure surges.

Lightweight and Easy to Install: Reduces labor and machinery costs.

Low Maintenance: Long service life reduces operational costs.

Safe for Drinking Water: Non-toxic and compliant with international water safety standards.

How to Choose the Right Polyethylene Pipe Fittings

Selecting the right fittings is essential for system efficiency and safety. Here are a few tips:

Match SDR and Pressure Rating: Choose fittings that match or exceed the pipe's pressure class.

Consider Pipe Diameter and Application: Use appropriate fitting types for irrigation, industrial, or gas use.

Check Certifications: Ensure fittings meet standards like ISO 4427 or ASTM D2513.

Select the Right Connection Method: Butt fusion for large systems, electrofusion for precise installations, and compression for quick fixes or temporary setups.

Installation & Maintenance Tips

Pre-inspect Pipes and Fittings: Ensure surfaces are clean and undamaged before welding.

Use Certified Fusion Equipment: Follow proper procedures for heating, aligning, and cooling.

Perform Pressure Testing: Test at 1.5 times working pressure after installation.

Protect Fittings Before Installation: Avoid UV exposure or rough handling on-site.

High density polyethylene pipe fittings offer reliable, long-lasting performance across a variety of industries. Whether used in water supply, gas distribution, agriculture, or industry, PE pipe fittings provide a safe, leak-proof, and cost-effective solution. Understanding the types and applications of polyethylene pipe fittings helps you design and build a stronger, more efficient piping system that can stand the test of time.

FAQ

1. What are PE pipe fittings used for?

PE pipe fittings are used to connect, redirect, or terminate polyethylene pipes in water, gas, irrigation, and industrial piping systems.

2. What is the difference between HDPE and PE fittings?

HDPE (high density polyethylene) fittings have higher strength and pressure resistance compared to standard PE fittings.

3. Can PE fittings be used for drinking water?

Yes, certified polyethylene pipe fittings are safe for potable water and comply with international standards.

4. How are PE pipe fittings installed?

They can be connected by butt fusion, electrofusion, socket fusion, or mechanical compression, depending on the application.

5. Are HDPE fittings suitable for high-pressure systems?

Yes, high density polyethylene pipe fittings with low SDR ratings (e.g., SDR11 or SDR9) can handle pressures up to 16–20 bar.

6. What certifications should PE fittings have?

Look for standards like ISO 4427, ASTM D2513, or local approvals for water and gas applications.
