Comprehensive Guide to U Shaped PVC Pipes and Fittings
PVC (Polyvinyl Chloride) piping systems are widely used across industries due to their durability, chemical resistance, and affordability. Among them, U shaped PVC pipes, U shaped plastic pipes, and U shaped PVC fittings play a unique and essential role in specialized plumbing and structural applications. This article explores their features, uses, and advantages to help buyers, engineers, and installers better understand their potential.
1. What is a U Shaped PVC Pipe?

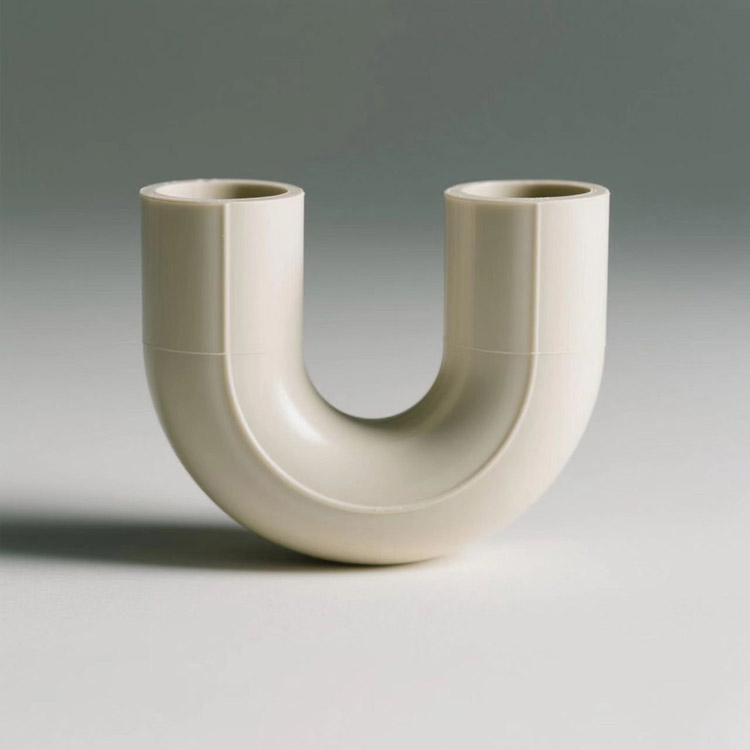

A U shaped PVC pipe is a pre-formed pipe with a U-bend, typically featuring two parallel open ends connected by a curved section. Unlike straight pipes or standard elbows, U shaped pipes are designed for:
Closed-loop piping systems
Situations where directional changes require longer flow paths
Space-limited installations where two connected ends are needed close together
These pipes are typically molded from rigid PVC or other plastic polymers, offering strength, lightweight characteristics, and excellent chemical resistance.
2. Common Applications of U Shaped Plastic Pipes
U shaped plastic pipes serve a variety of purposes in both residential and industrial systems:
Drainage systems: Handling wastewater turns in compact areas
Cable protection: Used in telecom or power lines to form a U-shaped route
Irrigation: Redirecting water in agricultural fields
Ventilation and lab exhaust: Managing airflow redirection
They are especially popular in installations where traditional elbows or flexible pipes might not offer the desired durability or alignment.
3. Benefits of Using U Shaped PVC Fittings
Using U shaped PVC fittings offers several practical benefits:
Ready-made shape: Eliminates the need for heating and bending straight pipes
Strong joint integrity: Fewer connections reduce leakage risk
Lightweight and easy to install: Ideal for DIY or fast-paced installations
Resistant to rust and corrosion: Compared to metal fittings
These fittings also enhance aesthetic and functional consistency in exposed installations.
4. Material Properties of U Shaped PVC Pipes
U shaped pipes made from PVC or other plastics exhibit:
Chemical Resistance: Withstand acidic and alkaline solutions, making them perfect for chemical drainage systems.
UV Stability (if UV-stabilized PVC is used): Suitable for outdoor use.
High Tensile Strength: They can endure reasonable pressure and mechanical stress.
Temperature Resistance: Operate well under moderate temperatures (usually -10°C to 60°C for standard PVC).
5. Installation Guide for U Shaped Fittings
Installation of U shaped fittings is straightforward:
Clean pipe and fitting ends thoroughly before application
Apply PVC solvent cement or adhesive for secure bonding
Hold and align the joints correctly until cured
Use appropriate clamps or brackets to prevent movement or vibration stress
Avoid excessive force during installation, as improper handling can cause cracking or misalignment.
6. Comparison: U Shaped vs Elbow Shaped Fittings
| Feature | U Shaped Fittings | Elbow Fittings |
| Bending Angle | ~180° (U-turn) | 45° / 90° |
| Space Requirement | More | Less |
| Flow Path Length | Longer | Shorter |
| Application | Looped flow, U-turns | Directional shifts |
7. Custom U Shaped Pipe Solutions
Many manufacturers offer custom U shaped pipe solutions for:
Specific diameters (e.g., 1/2", 1", 2", etc.)
Wall thickness adjustments for high-pressure applications
Color coding (e.g., gray for electrical, blue for potable water)
Integration with socket fusion or threaded ends
These customizations support industry-specific demands such as aquaculture, lab drainage, and custom machine design.
8. Market Trends and Demands for U Shaped Plastic Piping
With the growing push for modular, cost-effective construction and eco-friendly materials, plastic piping—especially molded solutions like U shaped pipes—is seeing higher demand. Industries such as renewable energy, hydroponics, and prefab building systems are adopting PVC and HDPE fittings due to:
Easy integration into modular systems
Reduced installation labor
Long service life and recyclability
Expect continued growth in both standard and custom molded U shaped pipe products.
U shaped PVC pipes and fittings are essential in specific installations where tight turns and space constraints exist. With their durability, flexibility in design, and ease of use, they are a smart choice for engineers, contractors, and end-users across sectors. Whether for drainage, conduit systems, or industrial layouts, U shaped fittings enhance efficiency and performance in modern piping networks.
