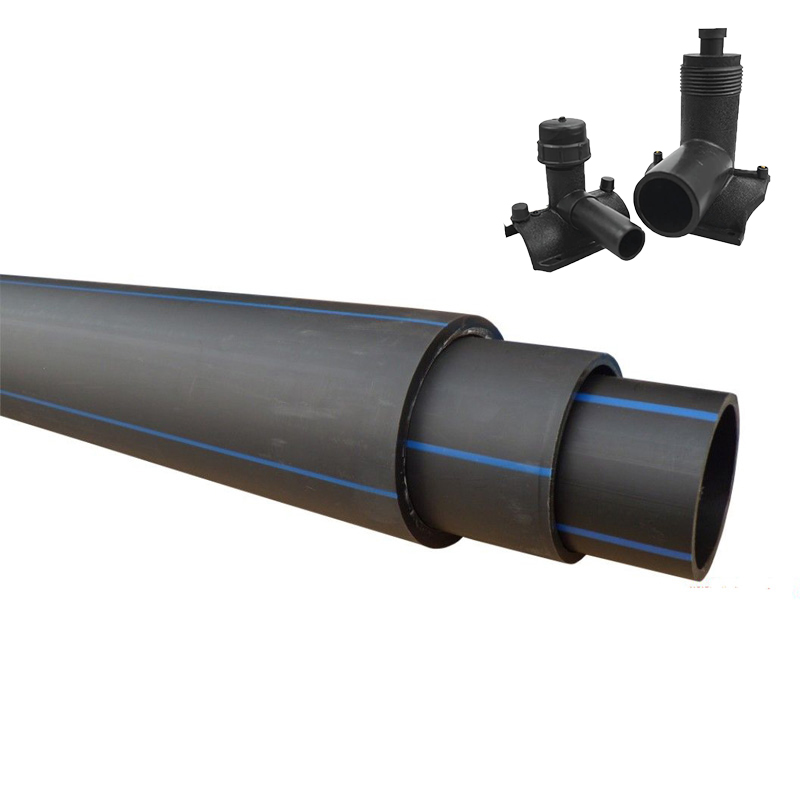

1. Methods of HDPE Pipe Jointing
HDPE pipe jointing refers to the process of connecting two or more HDPE pipe sections into a continuous, leak-proof system. Common methods include:
a. Butt Fusion
Process:Pipe ends are cut flat, heated with a heating plate, and pressed together to form a single continuous joint.
Advantages:High-strength joint, no metal components, long-lasting and resistant to chemical corrosion.
Applications:Municipal water pipelines, industrial fluid systems, and high-pressure applications.
b. Electrofusion
Process:Specialized HDPE couplingswith embedded electric wires are placed around pipe ends. When electricity is applied, the wires heat and melt the interface, forming a secure joint.
Advantages:Suitable for irregular or repair situations, provides uniform fusion, and works with small-diameter or high-pressure pipes.
c. Mechanical Couplings
Process:HDPE pipe couplingswith compression rings or clamps are used to join pipe ends without heat.
Advantages:Quick installation, easy maintenance or replacement, ideal for temporary or flexible pipeline systems.
2. Types of HDPE Couplings
HDPE couplingsare components specifically designed to connect HDPE pipe sections. They ensure tight sealing and support pipeline integrity. The main types include:
a. Standard Butt Fusion Couplings
Used for permanently joining two HDPE pipes of the same diameter.
Welded using the butt fusion process to form a continuous, leak-free joint.
b. Electrofusion Couplings
Contain embedded electric coils for heating the pipe interface.
Ideal for repairs, branch connections, or pipes installed in confined spaces.
Can handle high pressures and chemical environments.
c. Compression Couplings
Mechanically tightened using bolts or compression rings.
No heat required; easy to install or disassemble.
Suitable for smaller-diameter pipes or temporary connections.
3. HDPE Pipe Coupling Applications
HDPE pipe couplingsare essential in various scenarios:
(1) Water Supply Systems
Provide leak-proof connections for drinking water or irrigation pipelines.
Ensure long-term durability and prevent contamination.
(2) Gas Distribution Networks
Electrofusion HDPE couplings are widely used for high-pressure gas pipelines.
Ensure safety by providing robust, durable joints.
(3) Sewage and Drainage Systems
Flexible couplings accommodate slight ground movements.
Reduce maintenance costs by preventing leaks and joint failures.
(4) Industrial Applications
Transport chemicals, slurries, or abrasive fluids.
Couplings allow quick repair or expansion of pipelines.
4. Best Practices for HDPE Pipe Jointing
To achieve optimal performance and longevity of HDPE pipelines:
Proper Pipe Preparation:Clean, square-cut pipe ends are essential for both butt fusion and electrofusion connections.
Correct Coupling Selection:Choose HDPE couplings compatible with pipe material, diameter, and pressure rating.
Follow Manufacturer Guidelines:Adhere to temperature, pressure, and cooling specifications for butt fusion or electrofusion.
Inspection and Testing:After jointing, inspect all welds and couplings. Conduct pressure tests to ensure leak-proof performance.
Environmental Considerations:Avoid direct sunlight exposure during storage; use UV-resistant materials for outdoor installations.
5. Advantages of HDPE Couplings in Pipe Systems
Provide reliable, leak-proof connections.
Enable flexibility for expansion, repair, or reconfiguration.
Reduce installation time and labor costs.
Ensure safety in high-pressure or chemical applications.
Compatible with various HDPE pipe diameters and types.
HDPE pipe jointing is a crucial factor in building reliable and long-lasting pipeline systems. Utilizing the correct HDPE couplings—whether butt fusion, electrofusion, or compression—ensures strong, leak-proof, and durable connections. From municipal water supply to industrial chemical transport, understanding the methods, types, and best practices for HDPE pipe coupling allows engineers and installers to optimize performance, reduce maintenance, and extend pipeline lifespan. By combining proper jointing techniques with high-quality HDPE couplings, pipeline systems achieve exceptional safety, efficiency, and longevity.
