HAILI
HDPE (High-Density Polyethylene) pipes, commonly known as poly pipes, are highly popular in water supply applications due to their durability, flexibility, and resistance to various environmental factors. The raw materials of poly pipe produced by HAILI PIPE include PE80 and PE100, with various pressure levels (PN4, PN5, PN6, PN8, PN10, PN12.5, PN16, PN20, etc.) and diameter specifications (from 16mm to 1600mm
Poly Pipe in Black/Blue Color for Water Supply
Pipe Detail
| Product Name | HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply |
| Specification available | DN16-1600mm (outer diameter) |
| SDR/pressure ratings | For HDPE Pipe be made of PE100 grade material: |
| SDR9-PN20, SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10, SDR21-PN8, SDR26-PN6, SDR33-PN5, SDR41-PN4 | |
| For HDPE pipe be made of PE80 grade material: | |
| SDR9-PN16, SDR11-PN12.5, SDR13.6-PN10, SDR17-PN8, SDR21-PN6, SDR26-PN5, SDR33-PN5 | |
| Material to be used | Virgin PE80 or PE100 raw material from worldwide famous suppliers, like Borealis, Sabic, Sinopec..etc |
| Colors available | Black color with blue strips or blue color, or as per request |
| Markings on the pipe | As per customer's request. |
| Samples available | Yes, small quantity of samples available. |
| MOQ | Negotiable |
| Production lead time | 3-5 days for a 20ft container, 5-7 days for a 40ft container. |
| Warranty time | 15 years for normal use |
| Payment term | T/T or LC at sight |
| FOB loading port | Qingdao or Tianjin China |
| Place of origin | Jinan, China |
Poly Pipe in Black/Blue Color for Water Supply Specification
Poly Pipe in Black/Blue Color for Water Supply Fittings

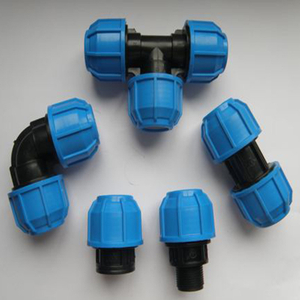

To support the connection of our HDPE pipe, we are also able to provide full ranges of HDPE pipe fittings:
The HDPE pipe fittings that we can provide:
DN20-110mm PP compression fittings
DN63-800mm HDPE butt fusion fittings
DN20-630mm HDPE electrofusion fittings
Welding Machines
The HDPE pipe welding machine available:
DN20-110mmHDPE pipe socket fusion welding machine
DN63-800mmHDPE pipe butt fusion welding machine
DN20-630mm HDPE pipe electrofusion welding machine
Quality Certificates
Shandong Haili Pipeline Technology Co., Ltd was built in 2013, covering an area of 10,000 square meters, with a total investment of 65 million dollars. Now, we have more than 24 sets of plastic pipe production lines, which can produce a wide range of HDPE pipes and pipe fittings, as well as pipe material research and development, underground pipe network design, etc.
Haili’s production line includes PE water pipes, PE gas pipes, PE mine pipes, PE sprinkler/irrigation pipes, MPP electrical conduit pipes, PVC-U water supply pipes, PE steel-reinforced drainage pipes, glass fiber-reinforced SMC molded plastic inspection chamber and domestic septic tank. These products are widely used in rainwater collection, sewage discharge, water supply and reuse, natural gas transportation, and industrial fluid transportation. The Haili Pipe brand has emerged as a leader in the Chinese pipe industry.
FAQ
1. What is PE pipe?
PE pipe (Polyethylene pipe) is a durable, corrosion-resistant plastic pipe used in various applications, including water distribution, irrigation, and gas transportation.
2. What are the advantages of using PE pipe?
PE pipes are known for their corrosion resistance, flexibility, high pressure resistance, and easy installation. They are ideal for applications in harsh environments and underground installations.
3. Can PE pipes be used for drinking water?
Yes, PE pipes are commonly used for drinking water systems due to their ability to maintain water quality and prevent contamination.
4. What are the different types of PE pipes?
PE pipes are typically classified by pressure rating, such as PE80 and PE100. PE100 pipes have higher strength and are suitable for higher-pressure systems.
5. How long do PE pipes last?
PE pipes can last over 50 years when properly installed and maintained, making them a long-term, cost-effective solution for piping systems.
6. How are PE pipes connected?
PE pipes are typically connected using butt fusion, electrofusion, or compression fittings, all of which provide leak-proof joints.
7. Are PE pipes resistant to chemicals?
Yes, PE pipes are resistant to many chemicals, making them suitable for use in various industrial applications, including chemical transport.
