HDPE butt fusion joint fittings

Types of HDPE Fittings

1. Butt Fusion Fittings

Butt fusion is a common method for joining HDPE pipes and fittings together. Butt fusion fittings include elbows, tees, reducers, and end caps. These fittings are heated and then pressed together to create a strong, leak-free connection.

2. Electrofusion Fittings

Electrofusion fittings use electricity to melt the HDPE material at the joint. These fittings are equipped with built-in wires and connectors that heat the surfaces and fuse them together when an electrical current is applied. Electrofusion fittings are commonly used for smaller diameter pipes and intricate connections.

3. Socket Fusion Fittings

Socket fusion is a method where the fitting is heated and then inserted into the end of the HDPE pipe. As the fitting and pipe cool, they fuse together. Socket fusion fittings are typically used for smaller diameter pipes and applications requiring a secure connection.

4. Mechanical Fittings

Mechanical fittings do not require heat for fusion. They use various mechanisms like compression, flanges, or threaded connections to secure the HDPE pipes together. These fittings are suitable for temporary connections or where heat fusion is not practical.

Types of PE Butt Fusion Fittings

Butt Fusion Elbows

These fittings are used to change the direction of the HDPE pipe while maintaining a continuous flow. They come in various angles, such as 45 degrees and 90 degrees.

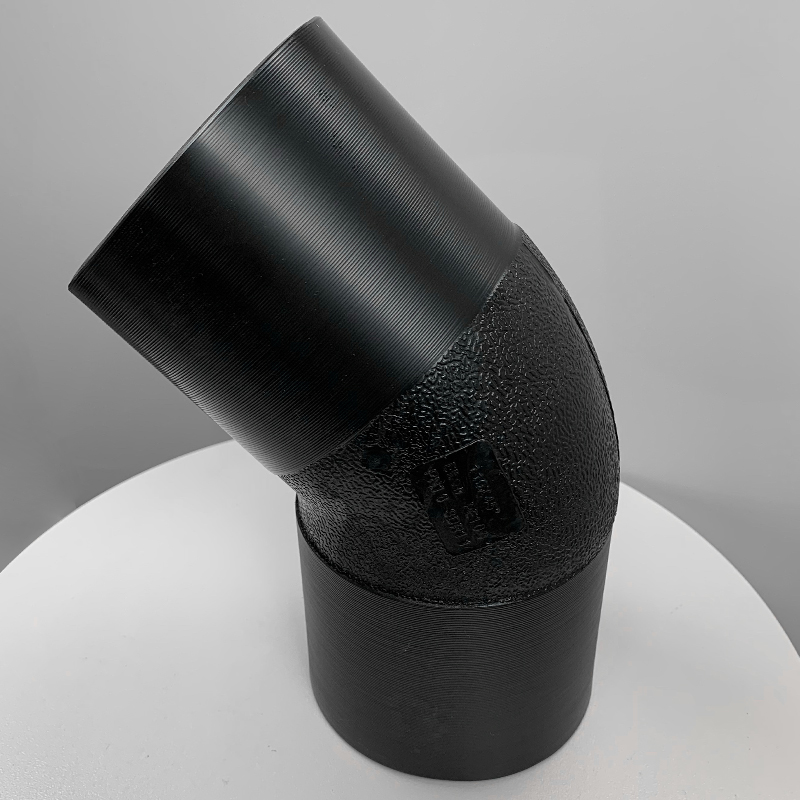

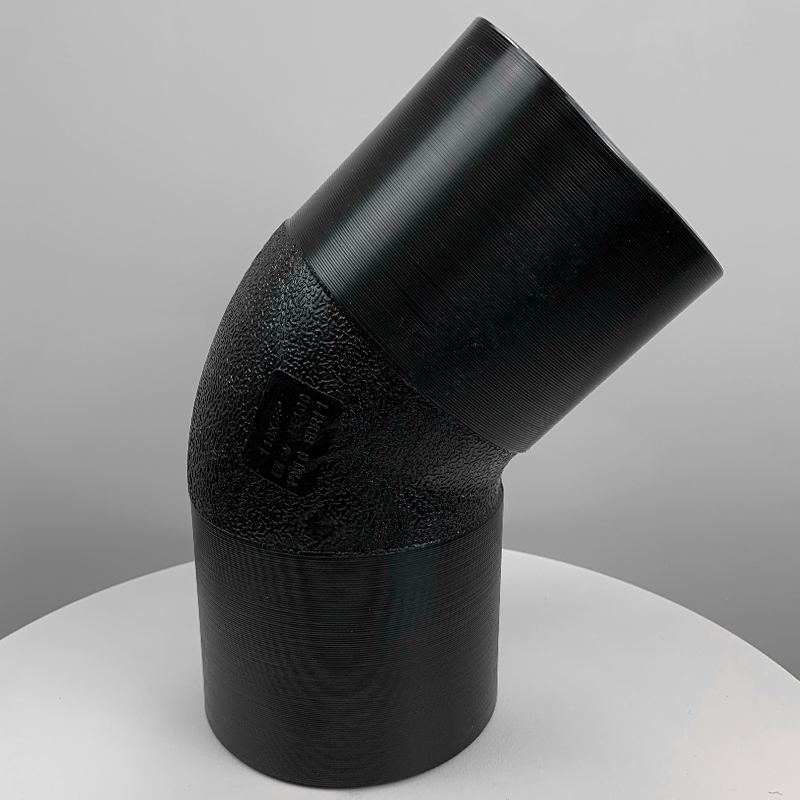

Butt Fusion 45 Degree Elbow

Butt Fusion 90 Degree Elbow

Butt Fusion Tees

Butt fusion tees are used to create a branch connection in an HDPE pipeline. They typically come in equal and unequal configurations.

HDPE Butt Fusion Reducing Tee

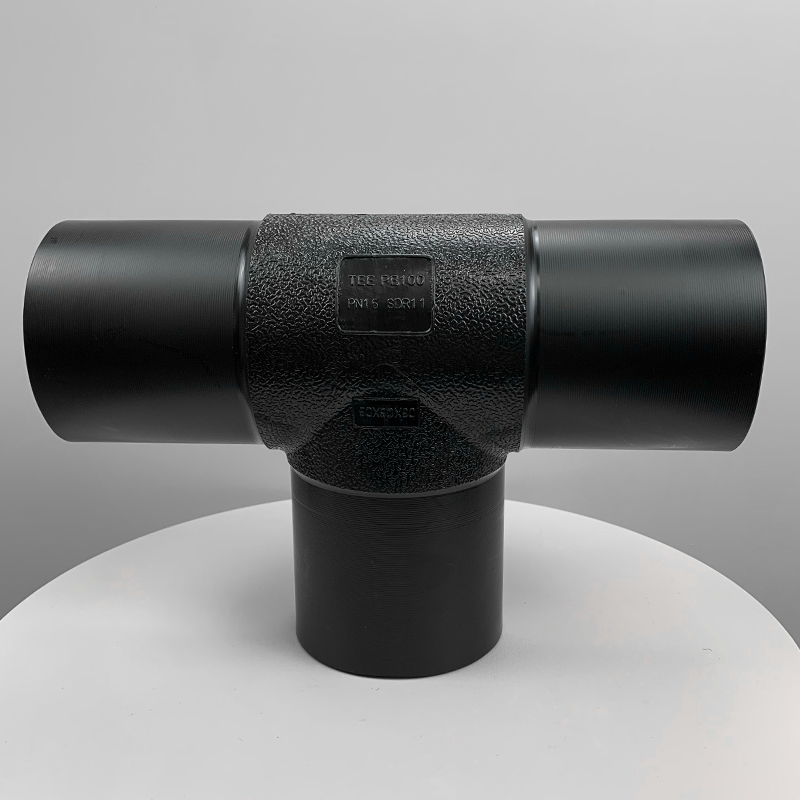

HDPE Butt Fusion Equal Tee

Butt Fusion Reducers

Butt fusion reducers are used to transition between pipes of different diameters. They can be concentric (reducing in size uniformly) or eccentric (reducing in size off-center).

Butt Fusion End Caps

End caps are used to close off the end of an HDPE pipe or fitting. They are often used in applications where pipes need to be sealed or capped.
